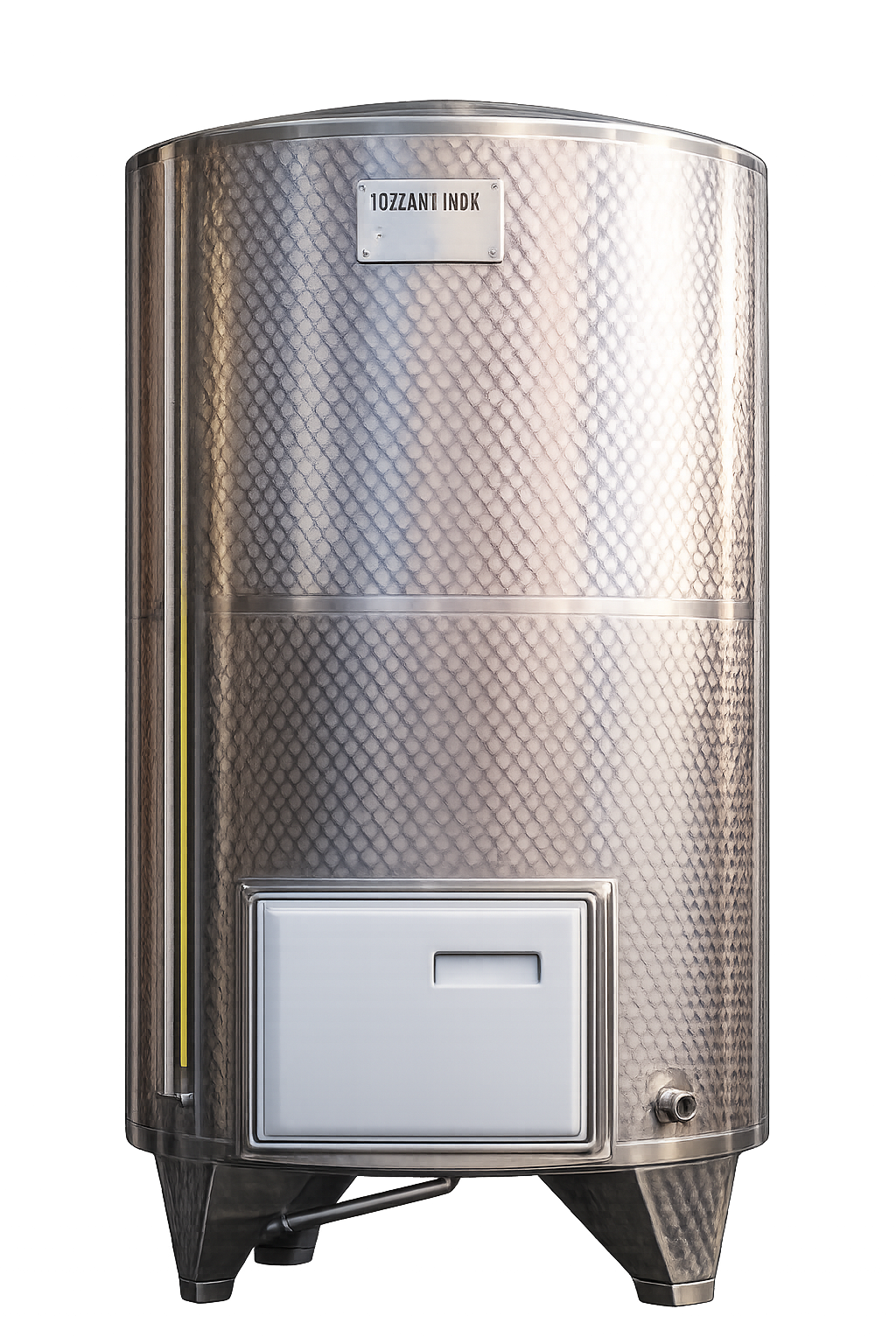

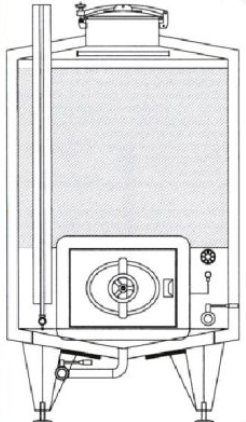

The insulated VIBO B stainless steel tanks are modern products manufactured from food-grade AISI 304 stainless steel, alloy with chemical formula BA X5NiCr 18/10, meaning without ferritic content, featuring a conical bottom and insulated jacket inside which cooling coils can be installed. These coils enable thermal transfer generated by the refrigeration unit. They are recommended when vinification cannot be carried out in temperature-controlled rooms or for tartaric stabilization prior to bottling.
Insulation is made of polyurethane, available in thicknesses ranging from 60 to 120 mm depending on tank capacity.

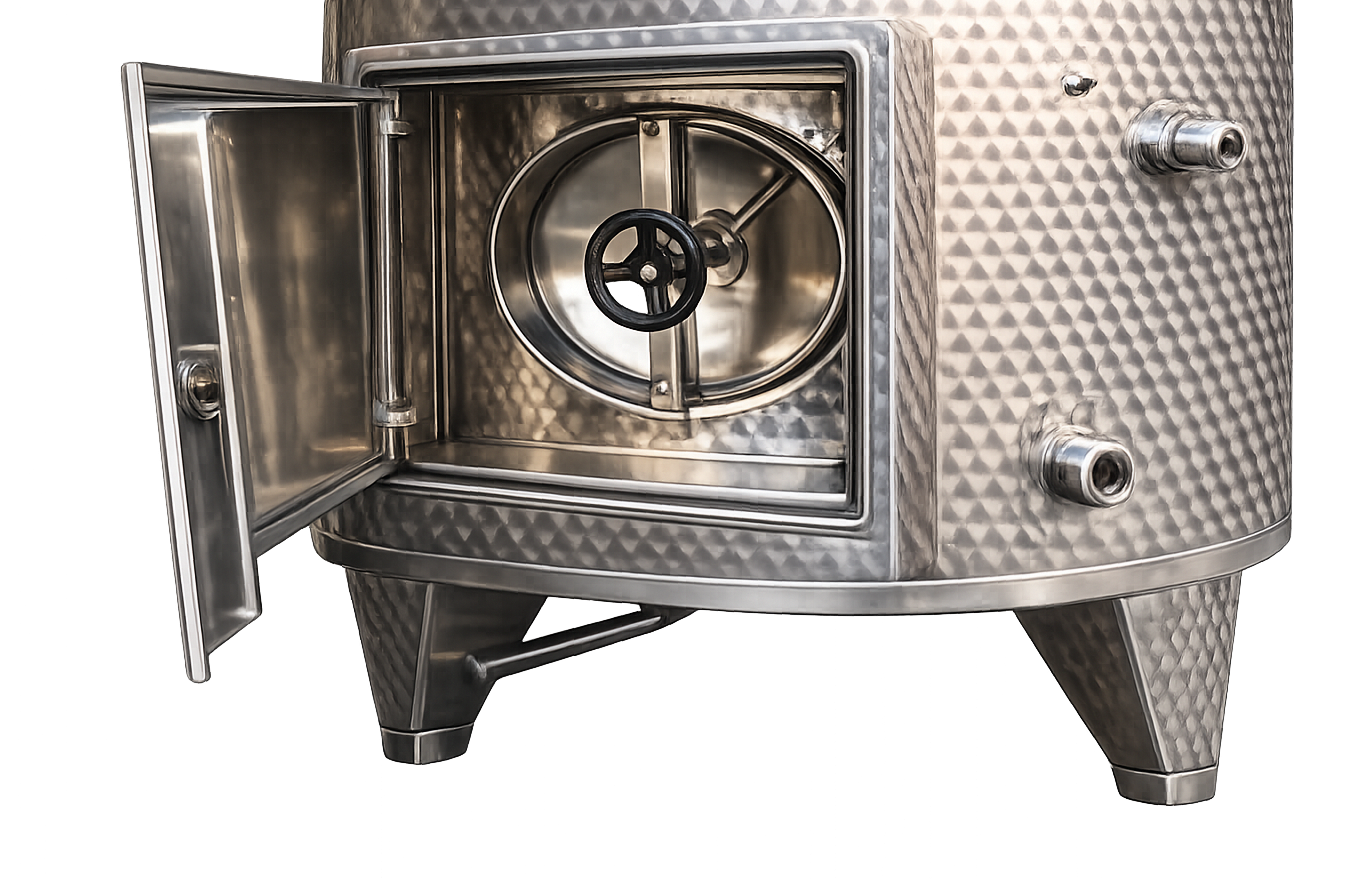

These tanks are equipped with a top hatch (lid) for filling operations and with an insulated inspection door and insulated counter-door made of stainless steel at the lower section, generally oval or rectangular in shape, facilitating access to the interior for cleaning and maintenance operations.
They are also equipped with a range of accessories supplied together with the tank upon purchase, as described in the table below:
Insulated VIBO B Tanks Table
Standard equipment (included):
- Top hatch Ø400 with lever-arm closure and PVC air vent
- Stainless steel ladder support, 500 mm length
- Level indicator with stainless steel protection and stainless steel discharge valve
- Cooling coils, maximum pressure 1.5 bar
- Inlet/outlet sleeve fittings Ø1"
- Stainless steel thermometer
- Inspection well for probe 1/2", length 200 mm
- Stainless steel wine sampling valve
- Insulated counter-door
- Total or partial discharge with 1" 1/2 connection without valve
- Manufacturer: Toscana Inox - Italy
