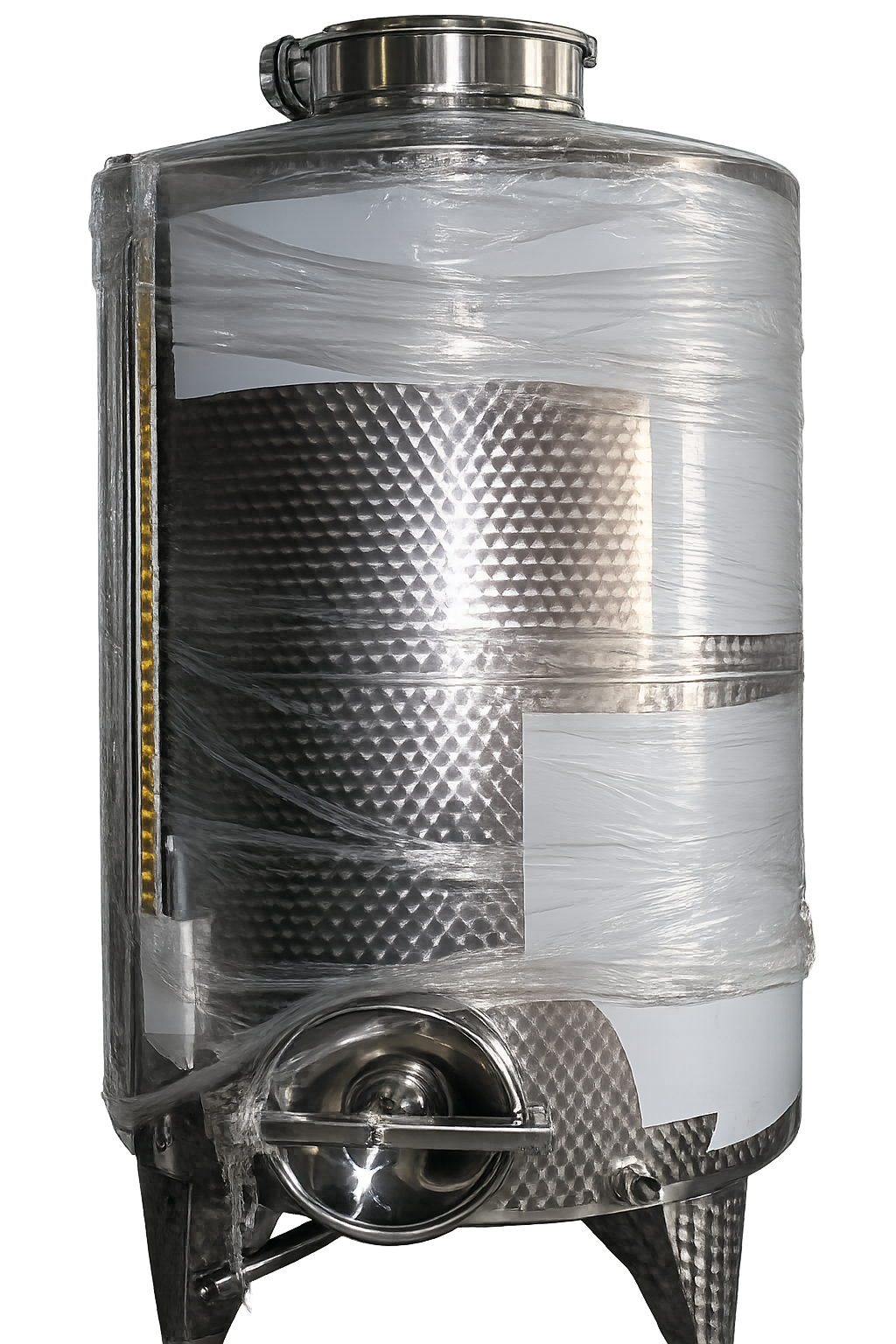

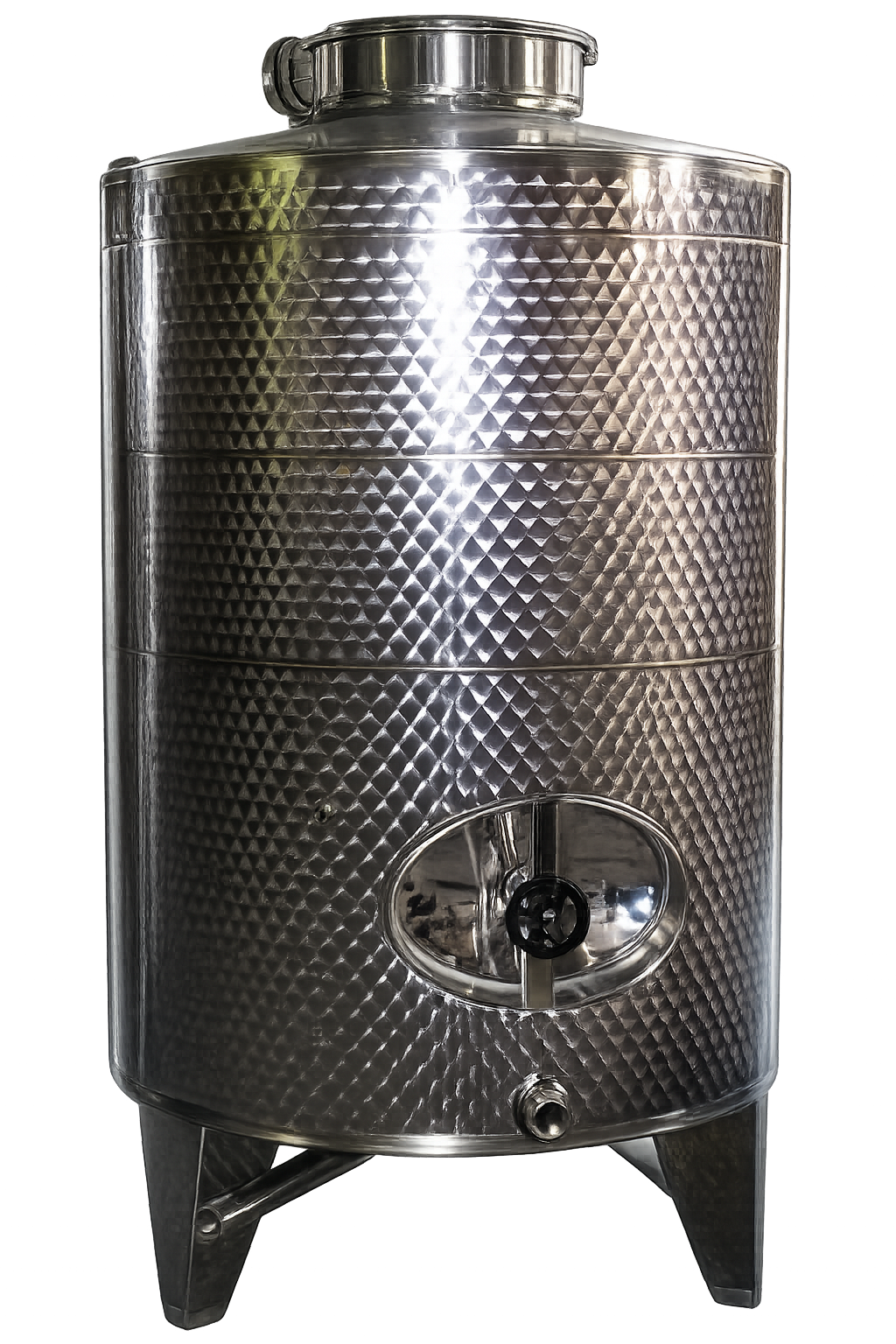

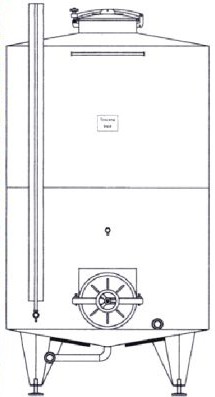

The VIBO B stainless steel tanks are modern products manufactured from food-grade AISI 304 stainless steel, alloy with chemical formula BA X5NiCr 18/10, meaning without ferritic content, featuring a conical bottom and mainly used for the storage and vinification of small, medium, and large quantities of wine, with capacities ranging from 300 L to 50,000 L, as well as for must fermentation.
These tanks are equipped with a top hatch (lid) used for filling and with an inspection door located at the lower section, available in round, rectangular, or oval shape (except for the 300 L model), facilitating easy access to the interior for cleaning and maintenance operations.
They are also equipped with a range of accessories supplied together with the tank upon purchase, as described in the table attached below:
VIBO B Conical Bottom Tanks Table
Standard equipment (included):
- Top hatch Ø400 with clamp closure (for tanks up to 1,000 L), lever-arm closure (for tanks from 1,500 L and above)
- Double-action air vent valve
- 2 welded stainless steel sleeves for side and bottom outlets
- 2 chrome-plated brass ball valves with drip tray (for tanks up to 1,000 L), 2 stainless steel ball valves (for tanks from 1,500 L and above)
Optional equipment (additional cost):

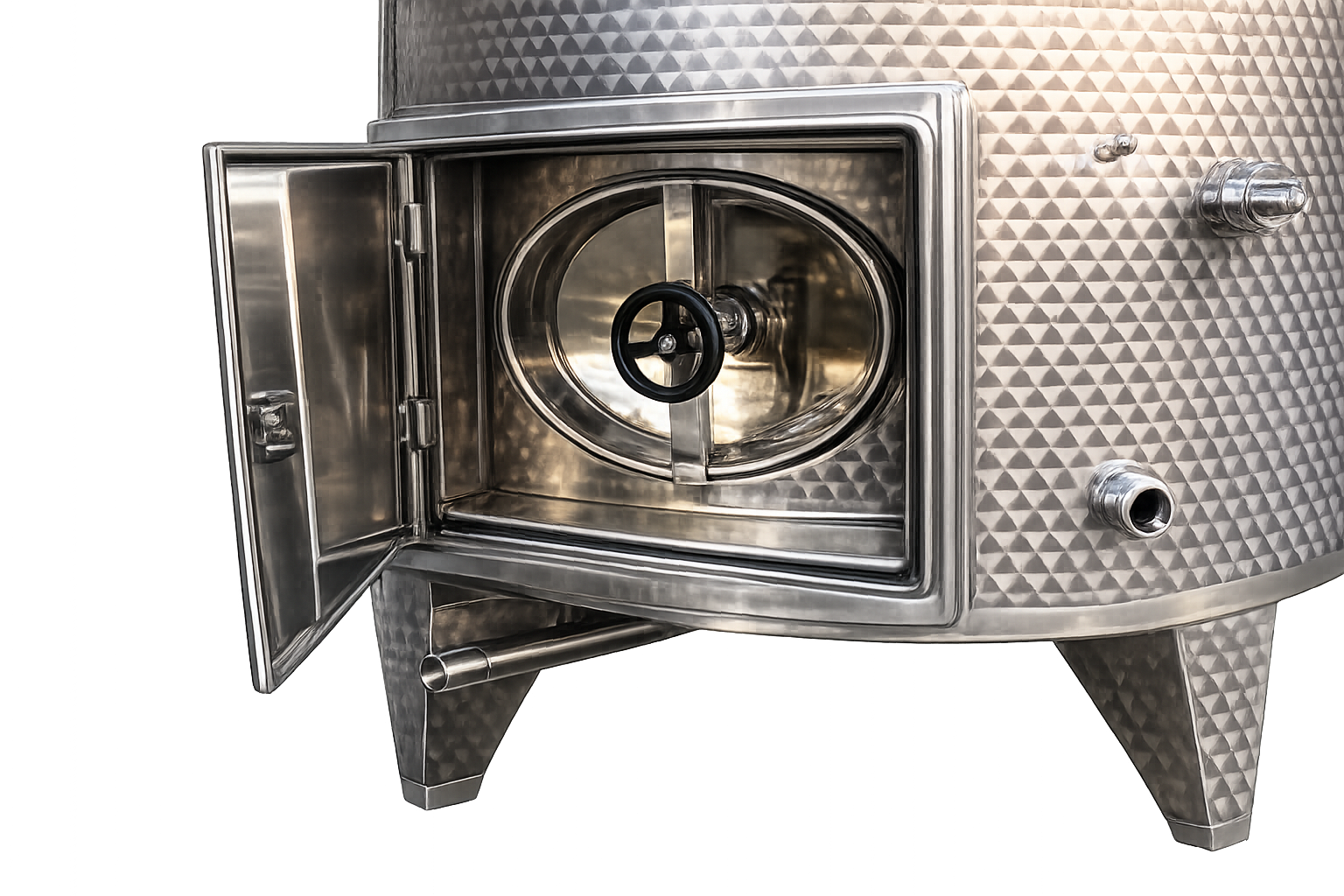

- Inspection door (round, oval, or rectangular)
- Manufacturer: Toscana Inox SRL - Italy
