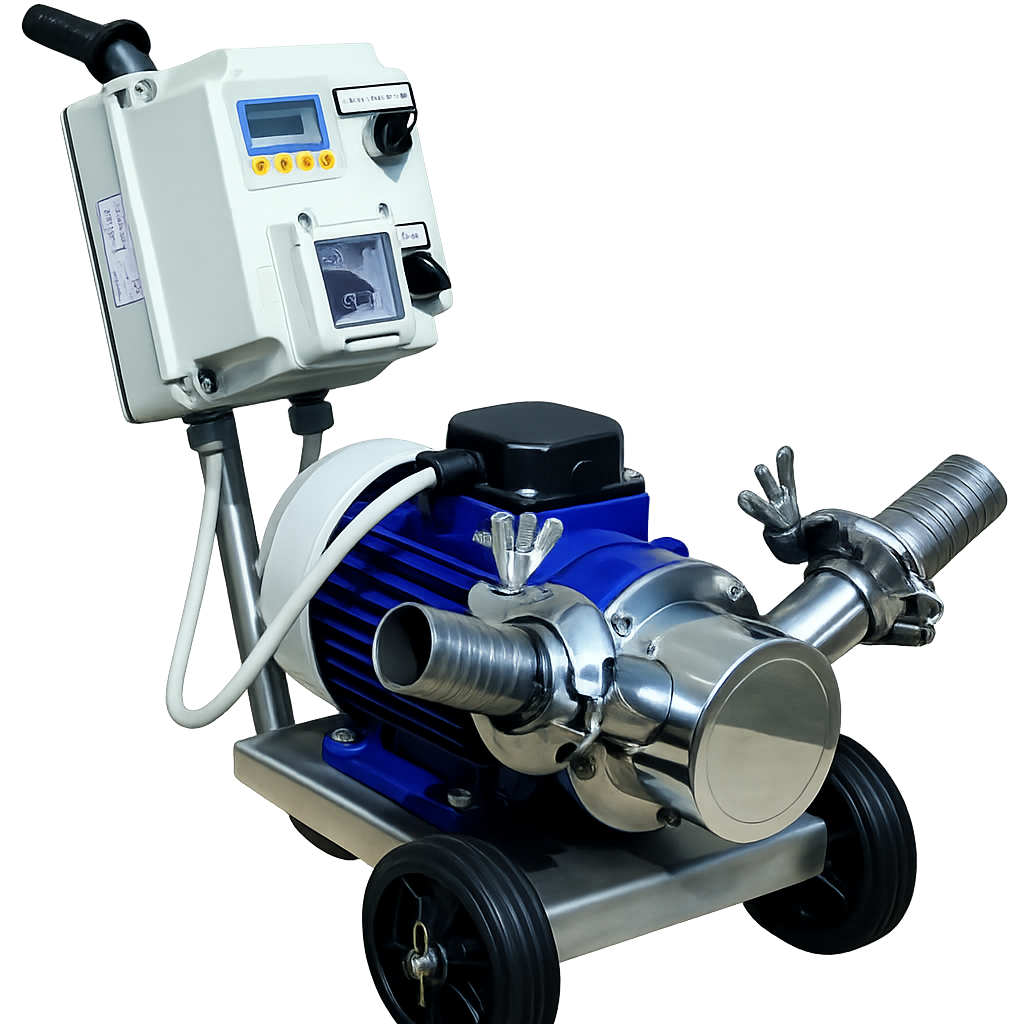

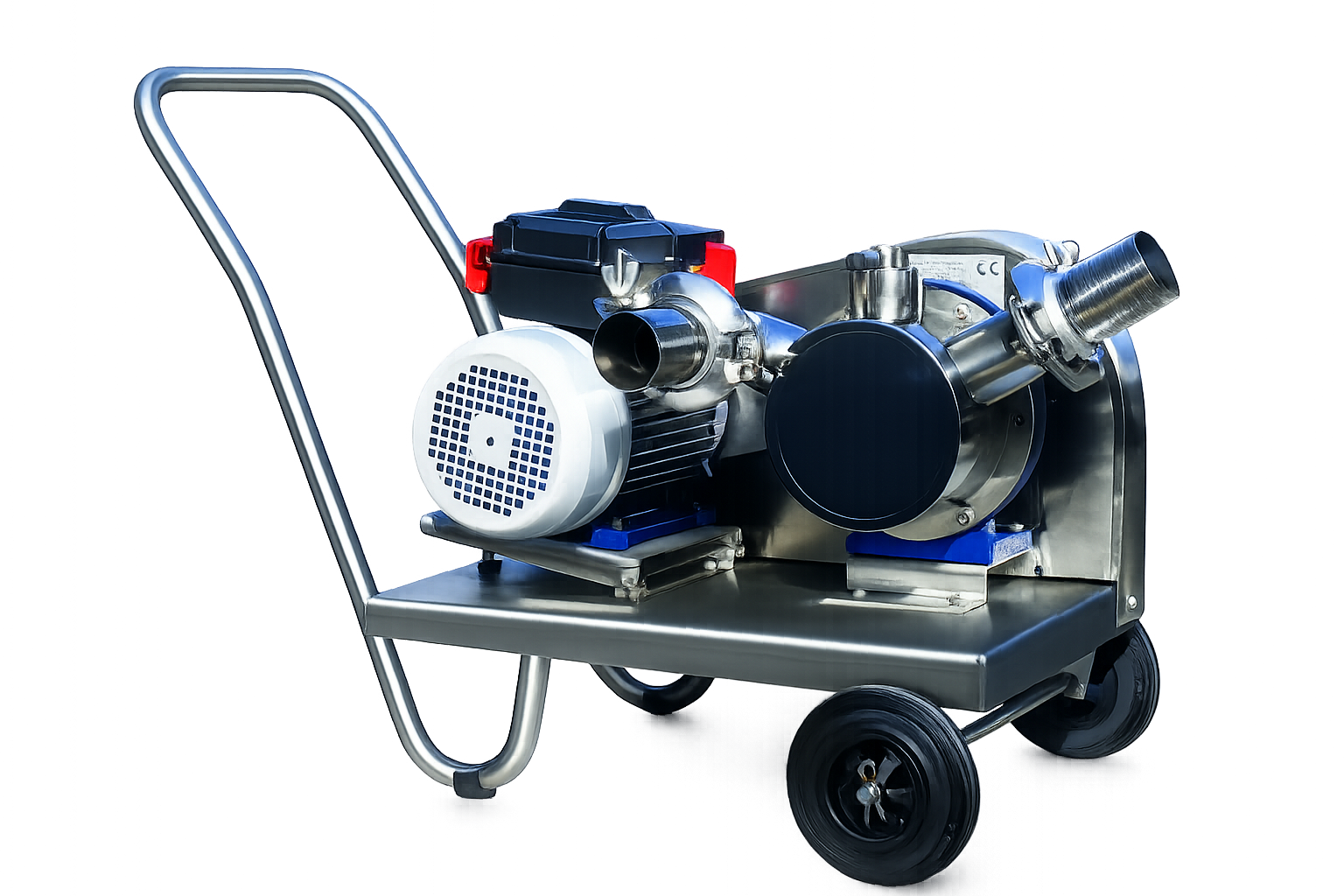

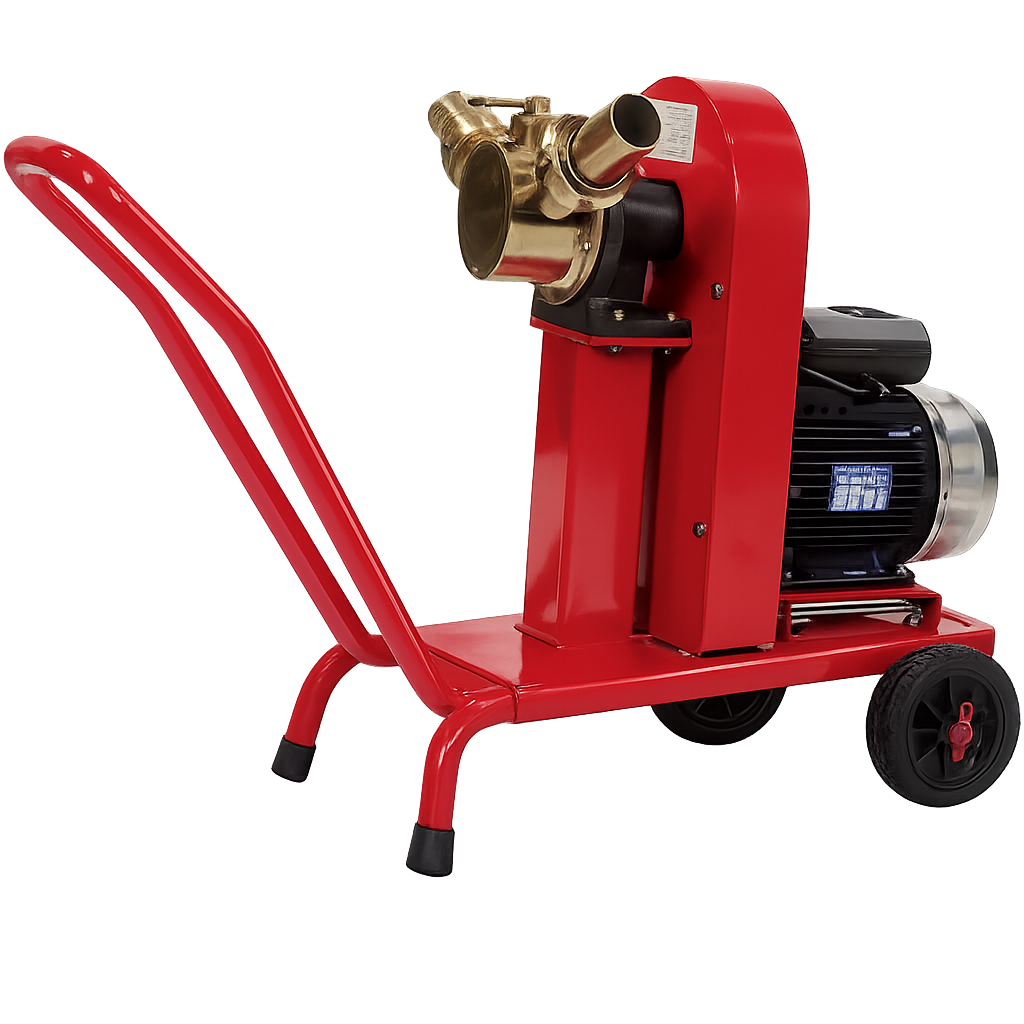

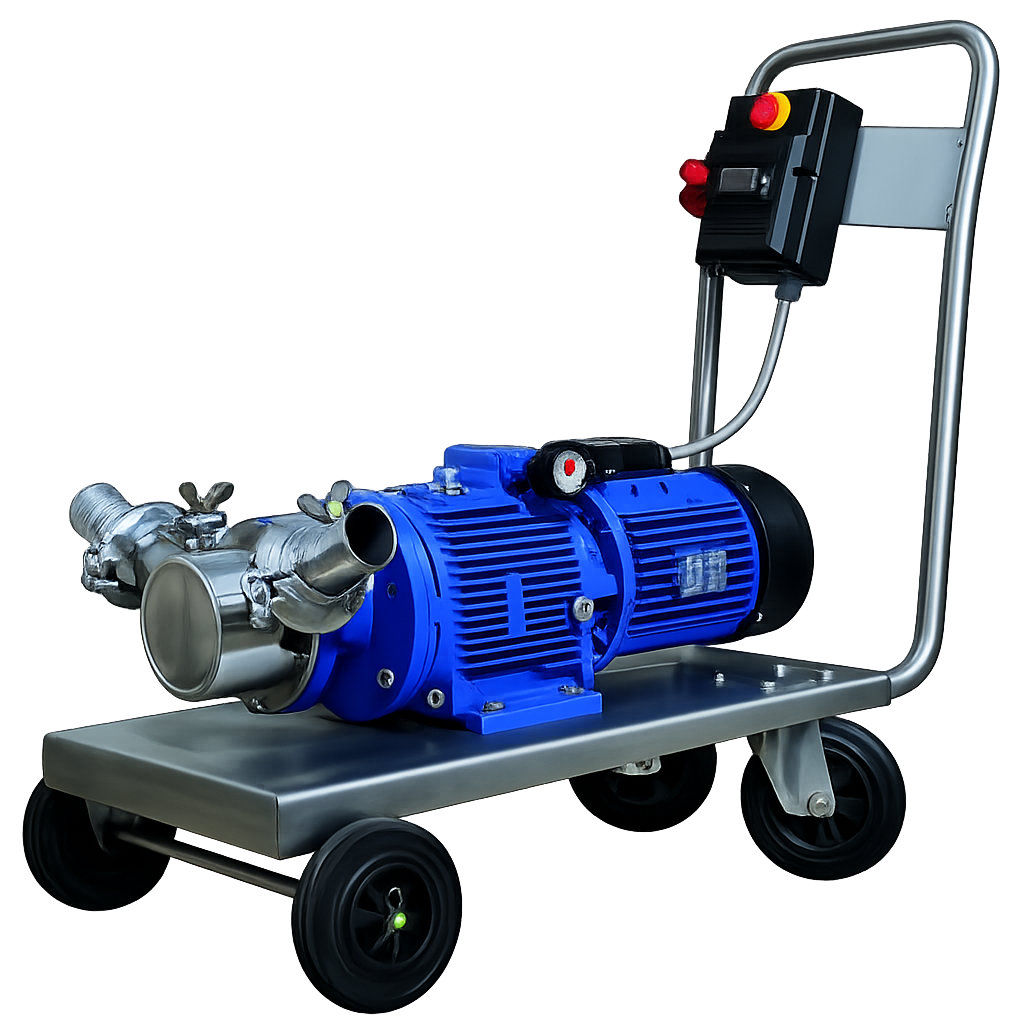

The Volumex transfer pumps, available in the 30, 40, 50, 60, 70, 80 and 100 versions, are self-priming electric pumps with flow rates ranging from 60 to 750 Hl/hour, while the inlet/outlet connections range from Ø 30 to Ø 100 mm. They are available in single-phase versions operating at 220 V or three-phase versions operating at 380 V. The Volumex 50 to Volumex 100 models are equipped with two operating speeds.
Specifications:
- Pump body made of food-grade AISI 304 stainless steel
- Neoprene rotor (food-grade rubber) specially designed for use in the food industry
- Motor with inverter for bi-directional operation
- Trolley made of food-grade AISI 304 stainless steel
Optional equipment (additional cost):
- By-pass
- Inverter – electronic device for speed and transferred flow rate adjustment
| MODEL | MOTOR | POWER HP | SPEED rpm | FLOW RATE l/min | INLET/OUTLET DIAMETER | WEIGHT kg |
|---|---|---|---|---|---|---|
| 30 | 220 V | 1.2 | 900 | 100 | 30 | 18 |
| 30/40 | 220 V | 1.2 | 900 | 100 | 40 | 18 |
| 40 | 220 V | 1.2 | 900 | 170 | 40 | 20 |
| 30 | 380 V | 1.2 | 900 | 100 | 30 | 18 |
| 30/40 | 380 V | 1.2 | 900 | 100 | 40 | 18 |
| 40 | 380 V | 1.2 | 900 | 170 | 40 | 20 |
| 50 | 220 V | 2.5 | 370 | 150 | 50 | 49 |
| 50 | 380 V | 2/3 | 370/740 | 150/270 | 50 | 49 |
| 60 | 220 V | 2.5 | 370 | 250 | 60 | 57 |
| 60 | 380 V | 3/4 | 370/740 | 250/430 | 60 | 57 |
| 70 | 380 V | 2.5 | 370 | 250 | 70 | 59 |
| 70 | 380 V | 3/4 | 370/740 | 250/430 | 70 | 59 |
| 80 | 380 V | 4 | 370/740 | 330/650 | 80 | 65 |
| 100 | 380 V | 4 | 370/740 | 330/750 | 100 | 70 |
BCM Volumex Electric Pumps User Manual
Manufacturer: BCM Snc
